V160SVertical single slide plate injection molding machine

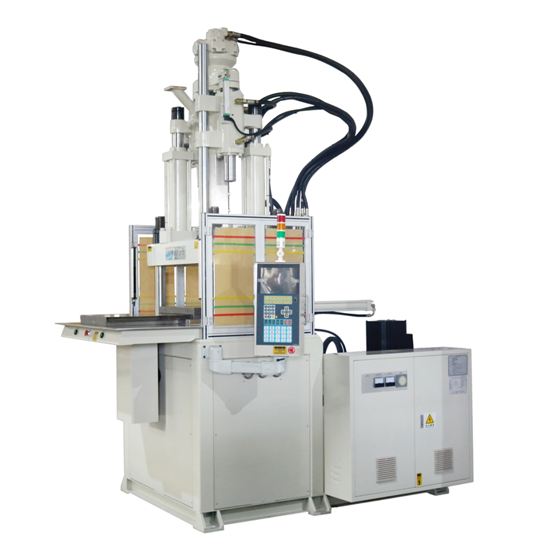

Machine name: V160S vertical single slide plate injection molding machine
Machine model: V160S

Customizing: Customizing according to customer requirements
Contact usTEL:+86 13650147429


Performance characteristics:

1, A single slide mode is installed on the V-type machine series to allow the machine to complete a cyclic action. After closing the mold, the lower mold will automatically slide to the front of the operator, which it is more convenient to operate, and externally complete the finished product ejector with high safety.

2, Multi-stage temperature control, multi-stage injection pressure, injection speed, and injection back pressure without segment adjustment, more suitable for various and precise plastic components molding. (engineering plastics).

3, Large ratio of screw L/D major diameter, more suitable for special engineering plastic.

4, Computer programs and automated take-out can be extensible. Embedding device connection, can achieve the design of full-automatic machine.

5, The mold closing adopts the mold locking cylinder design of direct pressure mother-child type which can rapidly decrease clamping and slow the low pressure clamping, and last the usage life of the mould.

6, Double cylinder balanced injection system is adopted with smooth and power.

7, Electrical control can automatically display the fault, also be convenient for troubleshooting and maintaining.

8, The servo motor brand can be selected according to the needs of the customer.

9, The screw and the clamping force can be used selectively.
